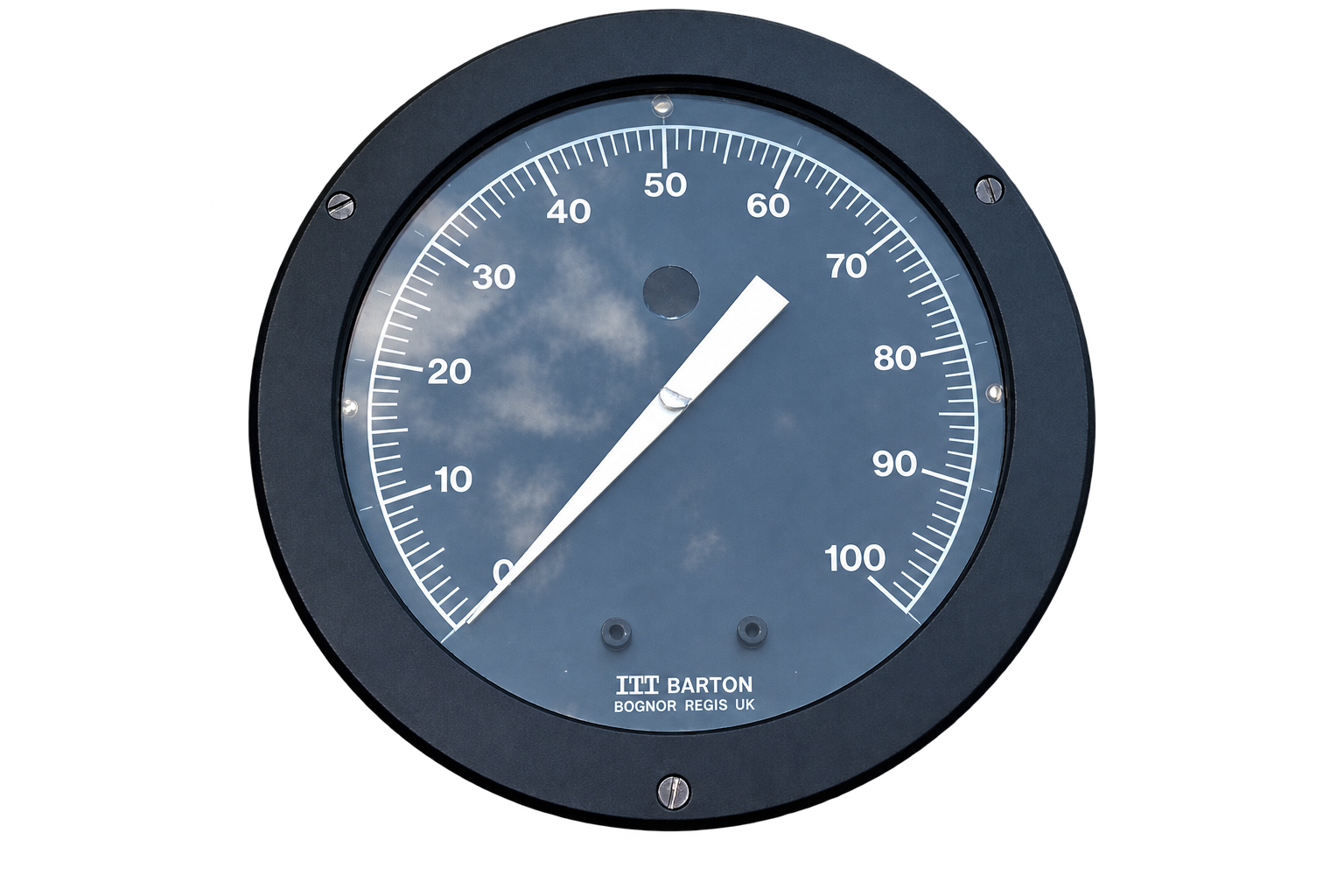

ITT Barton (Cameron) 6″ 227C, DP Indicator – Liquid Level Gauge

For Industrial Process Applications

Precise and rugged these indicators deliver crisp, clear, and consistent performance. As 100% mechanical, this line of instruments are quick and easy to install and have become integral to a wide variety of applications – from liquid level indication, measurement of liquefied gases such as LOX, CO2, ammonia, nitrogen, helium, hydrogen, and argon; jet engine/ missile testing; measurement and air conditioning systems. These non-powered units are especially ideal for remote site and critical back up applications.

Specifications

• 6″ 227C, Differential Pressure Indicator – Liquid Level Gauge
• Stocking Ranges: 0-100″ WC (all ranges available)
• Brass housing with 500 psi SWP (safe working pressure)
• 316SS Bellows
• Die-cast aluminum alloy case with black epoxy finish
• (B) – Glycol and water fill fluid
• 1/4″ NPT bottom pressure connections
• This gauge comes O2 cleaned
• Mounting bracket not included (available as an accessory adder)
