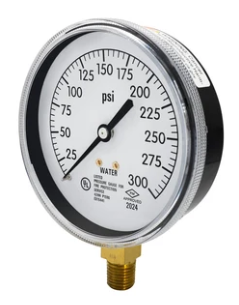

3.5″ REOTEMP Fire Sprinkler System Pressure Gauge

For Fire Protection Service

This Sprinkler Gauge is a high quality pressure gauge used on fire sprinkler systems in either water or air applications.  The pressure gauge features a 3.5” large dial size with a polycarbonate twistable lens for ease of servicing of pressure gauge.

Specifications

• Size: 3 1/2″  – Sprinkler Gauge
• Ranges:
  • Water: 0-300# Water
  • Air: 0-80-250# Air Retard
• Wetted Parts: Bronze tube, brass socket
• Accuracy: +/- 3-2-3% (ASME B40. 100 Grade B)
• Window: Polycarbonate, threaded
• Dial Face: Aluminum, white background with black graduations and markings and yearly dated
• Pointer: Plain, black finish
• Case: Black Polycarbonate, stem-mounted flangeless
• Connection: Lower male, 1/4 NPT
• Approvals: UL-listed (UL-393) US & Canada, FM Approved (Approval Standard 2311)
• Options: Private label / OEM dial
