3.5″ Trerice SG Sprinkler Gauge

Trerice logo

  • P/N: SGXD300 & SGRD80/250

For Fire Protection Service

The SG Series Sprinkler Gauge is specifically designed for the demanding pressure measurement requirements of the fire protection industry. The SG Series is furnished with a polycarbonate case & window.  Wetted parts are a bronze tube with a brass socket. Single scale, dual scale and private labeling is available. This gauge is UL-listed (UL-393), US & Canada and is FM Approved (Approval Standard 2311) for fire  protection system service.

Specifications

  • Size: 3 1/2″  – Sprinkler Gauge
  • Ranges:
    • SGX: 0-300# / 2000 kpa Water
    • SGR: 0-80-250# / 1720 kpa Air Retard
  • Wetted Parts: Bronze tube, brass socket
  • Accuracy: +/- 3-2-3% (ASME B40. 100 Grade B)
  • Window: Polycarbonate, threaded
  • Dial Face: Aluminum, white background with black and red graduations and markings
  • Pointer: Plain, black finish
  • Case: Black Polycarbonate, stem-mounted flangeless
  • Connection: Lower male, 1/4 NPT
  • Approvals: UL-listed (UL-393) US & Canada, FM Approved (Approval Standard 2311)
  • Options: Private label / OEM dial
Literature (PDF)
Weight .5 lbs
Dimensions 4 × 4 × 1.25 in
Range

3.5" Trerice SG Sprinkler Gauge, 0-300# / 2000 kpa, 1/4" LM; (SGXD300), 3.5" Trerice SG Sprinkler Gauge, 0-80-250# / 1720 kpa
Air Retard, 1/4" LM; (SGRD80/250)

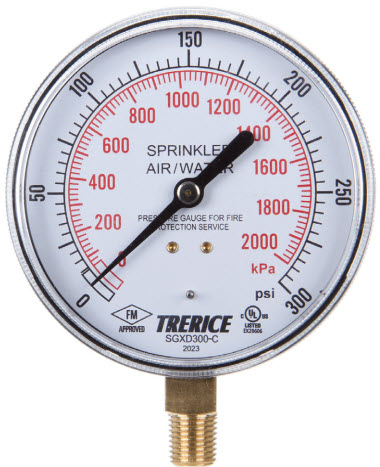

trerice sg series sprinkler gauges

$12.50

N.I.S.T. Cert.
SKU: SGXD300 & SGRD80/250 Categories: , Tag: Brand:
